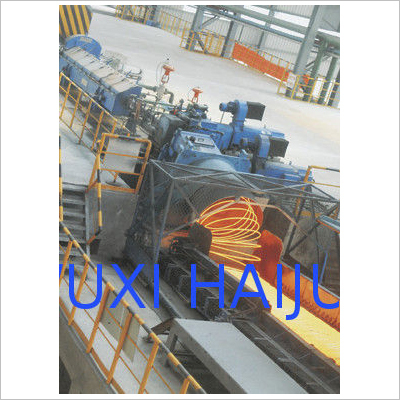

Hot Rolled Wire Equipment

Hot Rolled Wire Equipment
Hot Rolled Wire Equipment
Product Code : 55
Product Description

Detailed Product Description

Hot Rolled Wire Equipment

One production outline:

  • Billet: common carbon steel
  • Billet specification: 100*100*3000
  • Production specification: wire 6.5 - 8
  • Output: 80,000tons

Two Process program:

It uses billet with the specification of 100×100×3000 for 6.5 -8 wire. It uses one 400 bloomer and rolling 5-7 passes, then through the hot crop shearing into the following continuous rolling train. When rolling wire, need 300IM rolling and 300FM rolling accurately.Then into the ∮280 rolling.Then through spinning machine, to cooling roller,after cooling then packaging.

Three Process flow:

Wire manufacture process: billet—→ heating—→Φ400 bloomer—→ hot crop shear—→300IM unit—→300 FM unit—→280 wire FM unit—→spinning machine—→cooling roller—→packaging and marking —→ measurement—→ storage

Four equipment quote:

NO

NAME

Quantity

Height

Mechanical equipment



1

Loading bench

1

8

2

Loading roller

3

18

3

Push billet machine

1

17

4

Reheating furnace

1


5

Backed roller

1

8

6

Backed transport roller

1

8

7

Roller before machine

2

24

8

∮400 bloomer

1


81

Motor

1


82

Coupling

1

0.46

83

Reducer

1

27

84

Connection machine

1

32

85

Universal joint

3

4.17

87

∮400 3-roller rolling unit

1

27

9

Lift-down roller

1

18

10

Roller after machine

1

12

11

Output roller

2

8

12

Hot shearer

1


13

∮300 IM unit

2


13.1

Motor

2


13.2

Coupling

2

0.46

13.3

United reducer

1

27

13.4

Universal joint

8

1.57

13.5

∮300 2-roller rolling unit

4

24

14

Output run slot

1

2

15

∮300 FM unit

4


15.1

Motor



15.2

Coupling

4

0.92

15.3

United reducer

4

32

15.4

Universal joint

8

1.57

15.5

∮300 2-roller rolling unit

4

24

16

∮280

∮280 2-roller rolling unit

4


16.1

Moter

2


16.2

Coupling

4

1.07

16.3

United reducer

2

24

16.4

Universal joint

8

1.57

16.5

∮280 2-roller rolling unit

4

20

17

Looper

1

2.5

18

∮280 2-roller IM unit

4


18.1

Motor

2


18.2

Coupling

4

1.07

18.3

United reducer

4

2

18.4

Universal joint

8

8

18.5

∮280 2-roller IM unit

4

4

19

Spinning machine

2

22

20

Cooling roller

2

66

21

Binary mandrel

2

8

22

Balers

2

12

Process equipment

1


Hydraulic,lubrication equipment

1


Water system equipment

1


Electric control equipment

1
